Frameset
carbon fibre
motor
bosch cx
gearbox
rohloff e14
drive
gates carbon drive
cockpit
fully integrated
We used our collective experience to create the 856, selecting Titanium and Carbon fibre as the principle materials, and we designed every bolt using aerospace grade titanium with a uniform t30 torx head.
The 856 benefits§ from our TEI integration of cables and EDS technology to produce a titanium drive system for our gates drivetrain. We also examined all current component suppliers and where we felt we could offer more than was currently available we manufactured our own parts.
Bosch was selected for its undeniable expertise in electric motors, its reliability and ease of servicing with a global network of appointed service centres. To support this we chose the Rohloff E14 for gear range and is practically service free with legendary reliability.
To deliver a truly integrated approach we designed and manufactured our own cockpits, resulting in the LAGUNA and SOLANA bar and stem combinations. To complete our innovation, we created the ultimate wheel package by creating a wide/low profile carbon rim with a low rolling resistance.
25km/h Electric Bike
PERFORMANCE
Speed
25kph
DISTANCE
up to 70km
Weight
17.8kg
category
leisure, tour, commute
- Carbon fibre frame, forks, seat post
- Bosch CX Performance line system
- Rohloff E14 Speed Hub
- Gates Carbon Drive
- Carbon fibre rims
- Integrated lights
- Integrated cockpit
- Titanium bolt package
- Titanium drive system
25km/h Electric Bike
PERFORMANCE
Speed
25kph
DISTANCE
up to 70km
Weight
17.8kg
category
leisure, tour, commute
- Carbon fibre frame, forks, seat post
- Bosch CX Performance line system

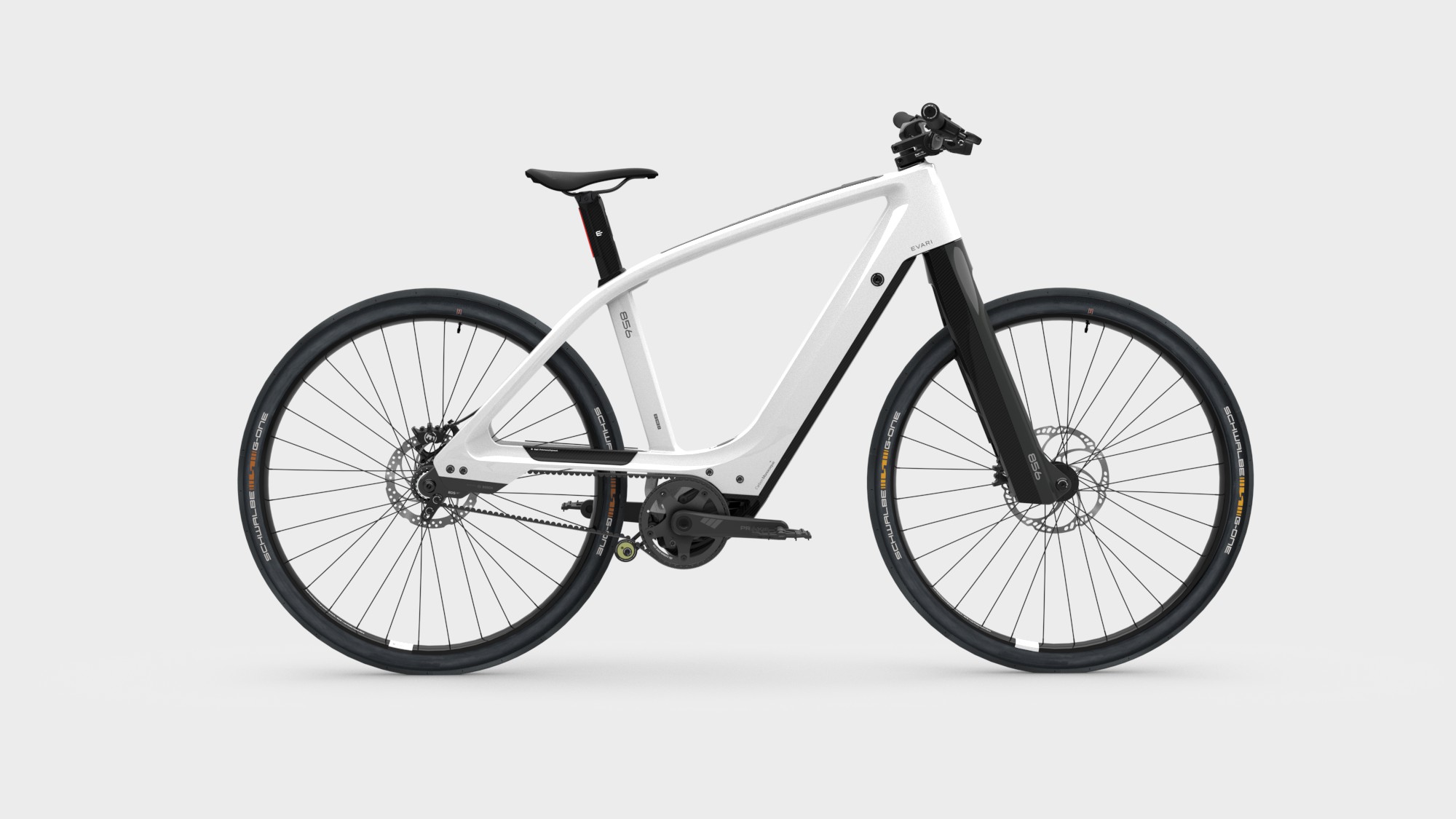

- Single Speed Hub
- Gates Carbon Drive
- Carbon fibre rims
- Integrated lights
- Integrated cockpit
- Titanium bolt package
- Titanium drive system
25km/h Electric Bike
PERFORMANCE
Speed
25kph
DISTANCE
up to 70km
Weight
17.8kg
category
leisure, tour, commute
- Carbon fibre frame, forks, seat post
- Bosch CX Performance line system
- Single Speed Hub
- Gates Carbon Drive
- Carbon fibre rims
- Integrated lights
- Integrated cockpit
- Titanium bolt package
- Titanium drive system
High Modulus Carbon Fibre Monocoque
Data Sheet
Material
Carbon Fibre
E Fitment
Bosch Performance Line CX
Cable Management
Fully Integrated
Battery
Fully Integrated
Top Tube Cover
Fully Integrated Bosch Kiox
Fully Integrated One Piece Cockpit
Data Sheet
Material
Carbon Fibre
Bar Offset
50mm
Rise
20mm
Upsweep
5 Degrees
Stem
One Piece Carbon Fibre
Motor Settings
Data Sheet
Motor Settings
Eco, Tour, Sport, Turbo, eMTB
Weight
2.9kg
Torque
85Nm
Maximum Support
340%
Max Speed
25km/h
Titanium Drive System
Data Sheet
Belt Tensioner
TI-6AL-4V Titanium
Snubber
TI-6AL-4V Titanium
Eccentric Wheel
TI-6AL-4V Titanium
Evari Bolt Package
TI-6AL-4V Titanium
Evari Drop Outs
Carbon Fibre
Supernova Fully Integrated Lights
Data Sheet
Headlight
Supernova Mini 2 Integrated
Watts
4.8W
Lumens
235lm
Material
AL6061
Material
Steel Ball Blasted Matt Black Anodized
Bespoke for the 856
Data Sheet
Material
Carbon Fibre
Rim Diameter
29"
Width
45mm
Profile
19mm
Hole
32
Fully Integrated 2 Piece Cockpit
Data Sheet
Material
Carbon Fibre
Bar Offset
50mm
Rise
20mm
Upsweep
5 Degrees
Stem
Alloy 6082 with 7075 Clasp
Carbon Fibre Top Tube Integration
Data Sheet
Computer
Bosch Kiox
Connectivity
Bluetooth
Walk Assistance
Smart Walk Assist
Activity Tracking
Auto track tour and fitness
eBike Lock
For additional theft protection
Total Electronic Integration
Data Sheet
Hoses
Quick release hoses for ease of servicing
Electric Cables
Fully Integrated & Quick Release
Headlight
Supernova Integrated
Tail Light
Supernova T-M99TL2
Computer
Bosch Kiox
High Modulus Carbon Fibre Monocoque
Data Sheet
Material
Carbon Fibre
E Fitment
Bosch Performance Line CX
Cable Management
Fully Integrated
Battery
Fully Integrated
Top Tube Cover
Fully Integrated Bosch Kiox
Titanium Drive System
Data Sheet
Belt Tensioner
TI-6AL-4V Titanium
Snubber
TI-6AL-4V Titanium
Eccentric Wheel
TI-6AL-4V Titanium
Evari Bolt Package
TI-6AL-4V Titanium
Evari Drop Outs
Carbon Fibre
Fully Integrated 2 Piece Cockpit
Data Sheet
Material
Carbon Fibre
Bar Offset
50mm
Rise
20mm
Upsweep
5 Degrees
Stem
Alloy 6082 with 7075 Clasp
Fully Integrated One Piece Cockpit
Data Sheet
Material
Carbon Fibre
Bar Offset
50mm
Rise
20mm
Upsweep
5 Degrees
Stem
One Piece Carbon Fibre
Supernova Fully Integrated Lights
Data Sheet
Headlight
Supernova Mini 2 Integrated
Watts
4.8W
Lumens
235lm
Material
AL6061
Material
Steel Ball Blasted Matt Black Anodized
Carbon Fibre Top Tube Integration
Data Sheet
Computer
Bosch Kiox
Connectivity
Bluetooth
Walk Assistance
Smart Walk Assist
Activity Tracking
Auto track tour and fitness
eBike Lock
For additional theft protection
Motor Settings
Data Sheet
Motor Settings
Eco, Tour, Sport, Turbo, eMTB
Weight
2.9kg
Torque
85Nm
Maximum Support
340%
Max Speed
25km/h
Bespoke for the 856
Data Sheet
Material
Carbon Fibre
Rim Diameter
29"
Width
45mm
Profile
19mm
Hole
32
Total Electronic Integration
Data Sheet
Hoses
Quick release hoses for ease of servicing
Electric Cables
Fully Integrated & Quick Release
Headlight
Supernova Integrated
Tail Light
Supernova T-M99TL2
Computer
Bosch Kiox
The handling feels engaging on gravel and over long road distances, it's relaxed whilst remaining responsive.
Carefully configured specification for performance and agility
Please contact us directly if you don't find the answer you are looking for here.
We do not recommend 'chipping' the motor of your electric bike as this may make the bike illegal under the countries law in which you are riding. It should also be noted that the manufacturer of the motor may void the warranty should they find out that the motor has been tampered with.
Please let us know which country your Evari will be ridden in and we will endeavour to fit the correct motor specified for that country.
The Bosch CX Performance Line motor weighs 2.9kgs
The motor produces 85Nm of torque
The Bosch motor has a 2 year warranty as standard if the product is not used in a commercial capacity.
This is a common question for many eBikers. There is no definitive answer. The number and variety of influential factors is simply too great. Sometimes a single battery charge will take you less than 20 kilometres, while at other times it will take you much further than 80 kilometres.
Usually, airlines do not allow lithium-ion batteries with a capacity greater than 100Wh. Please enquire with your airline before travelling Most likely, you will have to arrange a battery at your destination or ship the battery separately by land (following the regulations for hazardous goods Class 9).
The battery can be charged by taking the unit off (if you need to charge it e.g. at your desk) or by using the onboard charger situated above the motor integrated in the frame.
We ship all Evari's with the Bosch Fast Charger which charges to 50% in 1.2h and full capacity in 3h.
Your battery can remain in the bike whilst not being used, or simply take it out and store in a safe place.
No, with a modern Lithium ion battery there is no need to completely displace the battery prior to a charge
Please leave the battery in the bike during cleaning. The battery is concealed in the frame and along with the carbon fibre cover, it helps to prevent water ingress during cleaning.
Rohloff offer a 2 year warranty as standard.
The Rohloff E-14 has been developed with a focus on maximum durability and efficiency. Very few maintenance procedures are required so ensure this system remains in top condition.
We believe Rohloff have an incredible track record in reliability and are frequently chosen by long distance cyclists who want a fit and forget system with very little maintenance. We also believe the gear range offers the rider the ability to tackle any gradients they might face
We believe for most city environments without any major hills, one gear is a great simple, fuss free option. Please talk to us further to see if a single speed works for you.
It depends how you like the bike to feel and we can adivse if in doubt, however, as a general guide please look at the frame details in the above geometry section.
If you take a look at our configurator, you will find a comprehensive list of colour options. This will be updated frequently, and we can mix any colour and finish you can imagine!
Yes we can supply the necessary bearings for your wheels. They should last a long time as DT Swiss are renowned for the quality and longevity, if in the event that they are feeling loose or slightly gritty, we can replace them for you. These will be available in our app store
Front hubs are 110mm Boost and 142mm Rear
E-bikes have an increased amount of torque running through the rear wheel so we use the best spokes possible for our E-bikes. Sapim are one of the world leaders in spokes and we use their butted spokes called the 'strong spoke'. We can supply spares if needed
The trend to wider rims on road and mountain bikes is mainly to give the tyre a more rounded profile on the rim. This aids traction and rolling resistance
Not as standard, but they are tubeless compatible and this can be achieved quite easily with 42 mm rim tape from Schwalbe and tubeless tyre valves. We would also recommend using an appropriate sealant if you intend to install tubeless tyres. Please also ensure that the tyres are tubeless compatable.
We would recommend Magura pads, although there are numerous versions of after market brake pads available.
Yes we can set up the brakes to how you prefer and will ask you at the time of preference, as we export bikes around the world.
We spec 203 mm front rotors and 180 mm rear rotors for maximum brake performance.
Disc brakes can occasionaly require bleeding to take excess air out of the system. The mineral fluid in Magura brakes is of the highest quality, and the brakes are fully bled prior to shipment so under normal use we wouldn't anticiapte them requiring a re-bleed for at least 300 hours use.
Between 16kg - 19kg depending on the setup
Titanium is incredibly strong and lightweight and is a perfect material for our fixings. Furthermore all our titanium screws have a PVD black coating (Physical Vapour Deposition) and are laser etched.
We use aerospace grade 6al 4v spec titanium
From the time of order placement to despatch we anticipate a lead time of 14-28 days, however, we will notify you of longer lead times if your requests for paintwork require more sourcing and development time.
Yes, we can supply saddles from Selle Italia but we have chosen the Novus Boost TM for its great comfort so we are pertty sure you will like it. This from Selle Italia:
Created with pure comfort in mind, the Novus Boost Evo TM Superflow is ideal for epic rides through the most challenging of landscapes. Completely redesigned from the ground up, this saddle is lightweight and comfortable thanks to its wave profile. This evolved design supports your ischial bones on long rides and Superflow cut-out reduces pressure on the perineum. The Manganese rails and short nose improve pedalling ergonomics, manoeuvrability, comfort and performance.
Please inform us upon the purchase of your Evari to ensure your warranty relates reasonably to your purchase date. If you have a warranty request, please contact us at hello@evaribikes.com and we will work with you to ascertain the problem together.
Yes, we have attachments for mudguards, the mudguards are currently in development and will be released soon. We are producing these ourselves and will suit the bikes aesthetic as well as being highly functional.
There is a maximum rider weight of 125Kgs
If you are based in the UK, please give us a call and we can arrange a location.
Not at present but this is something we are looking into.
We would advise against the use of a jet wash around an electric bike. Although all components have a waterproof rating, the forces from jet washers can eventually create water ingress issues.
Your 856 bike is rated for light gravel/towpath off-road use, however, we do not advocate jumping on your bike as it is not designed with suspension front or rear. We would stress that the standard tyres are rated for light gravel use only.
Yes you can, however, the light may be obscured and so won't be suitable for night riding use if this is the case. Please always ensure that your lights are in full working order and the beams are not obscured whenever riding in the dark.
The 856 is the product of countless hours of design and engineering knowledge based on our desire to innovate. It's the first bike from Evari and we've already won a coveted Eurobike award.
