Park Tools

BBT-69.4 - Bottom Bracket Tool - 16-Notch 44mm

£38 GBP
£38 GBP
Tax included.
Fast delivery within the UK

QKBBT694

  • A precision CNC-machined aluminium tool for the installation and removal of select threaded bottom brackets with 16-notch tool fittings, including Shimano®, SRAM® GXP, Chris King®, Campagnolo®, and many others

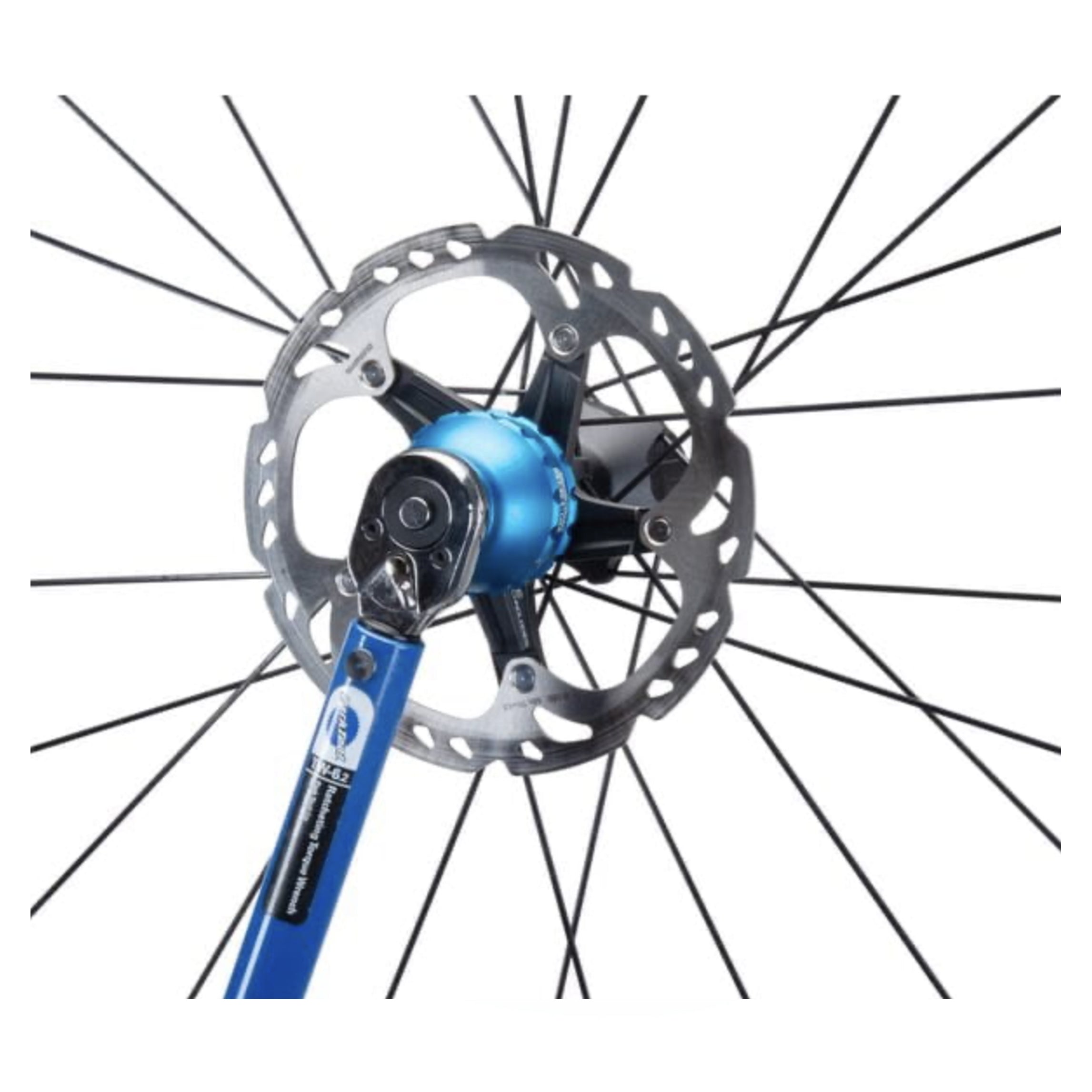

  • The BBT-69.3 can also be used to remove and install 16-notch disc brake rotor lockrings
  • Manufactured in-house by Park Tool, anodized for easy identification and featuring a ratchet/torque wrench-compatible 3/8"" drive
  • The BBT-69.4 features integrated threads for full compatibility with the Park Tool BBT-RS Bottom Bracket Tool Retaining System (sold separately)

  • Fits 16-notch tool fittings with a major diameter (outside of notches) of 44-45 mm and a minor diameter (inside of notches) of 42.7 mm, including:



  • Shimano® BB80, BB5700, XT® BB70, BB51, and previous external bearing threaded cups
  • Threaded bottom bracket cups from Campagnolo®, Chris King®, FSA® MegaExo®, Hope™, SRAM®/Truvativ® GXP®, Race Face® X-type, Surly®, Wheels®, Fulcrum®, and others
  • 16-notch Bafang® BBSH, BBS02 mid-drive motor lockrings

  • Product Type
    Bottom Bracket Tools
  • Product Type
    Brake Tools
  • Colour
    Blue
  • Size
    One sizeq
